| Product Attribute | Attribute Value |
|---|---|
| Actuator Type | Pull Ring and Pushbutton |
| Alternate Mfr Part Number | 445065420 |
| Contact Form | 1 NO, 2 NC |
| Contact Type | 2 NC, 1 NO |
| Current Rating | 6 A |
| Function | Safety |
| IP Rating | IP67 |
| Mounting Type | Flat Surface/Bracket |
| Series | |
| Voltage Rating | 120 VAC |
Overview

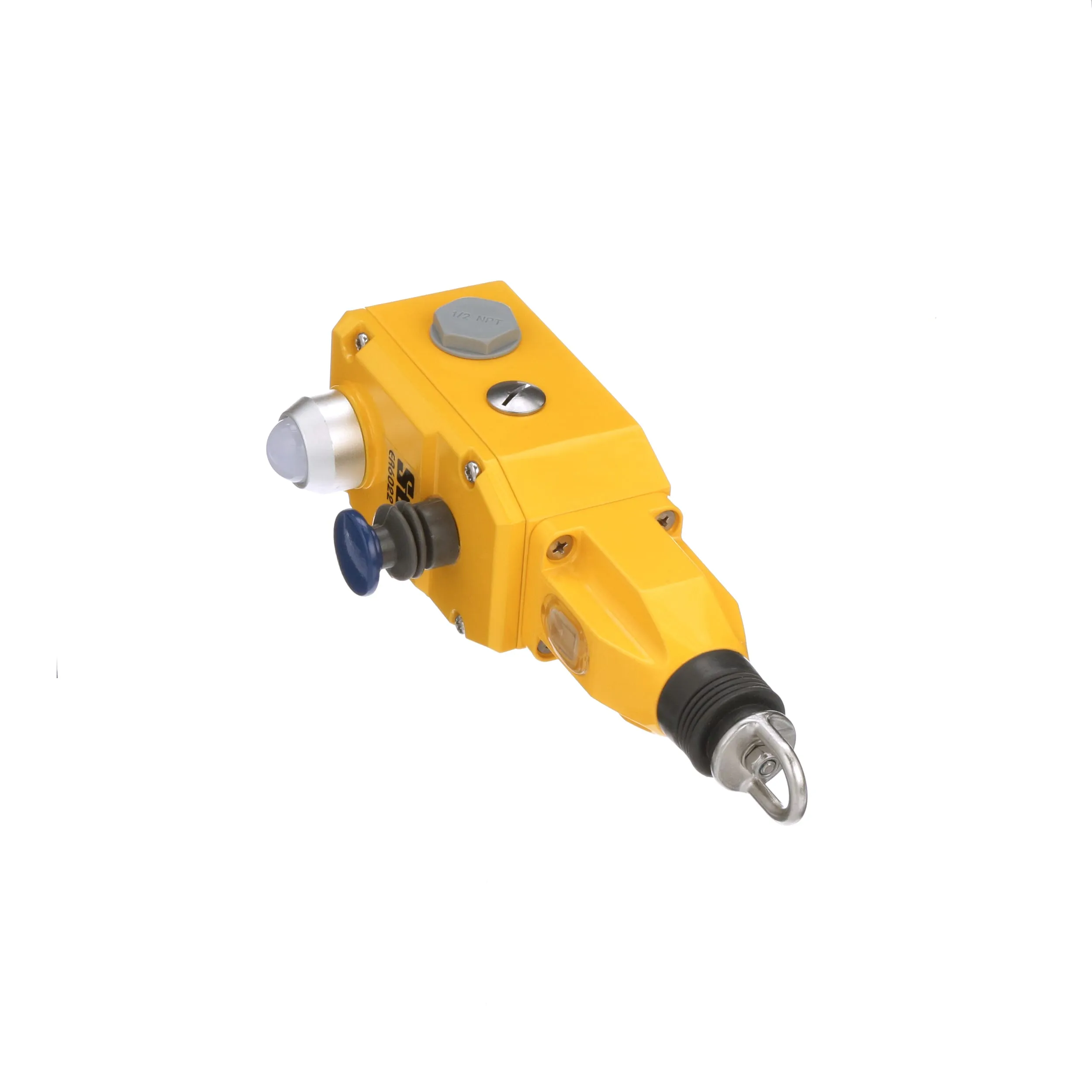

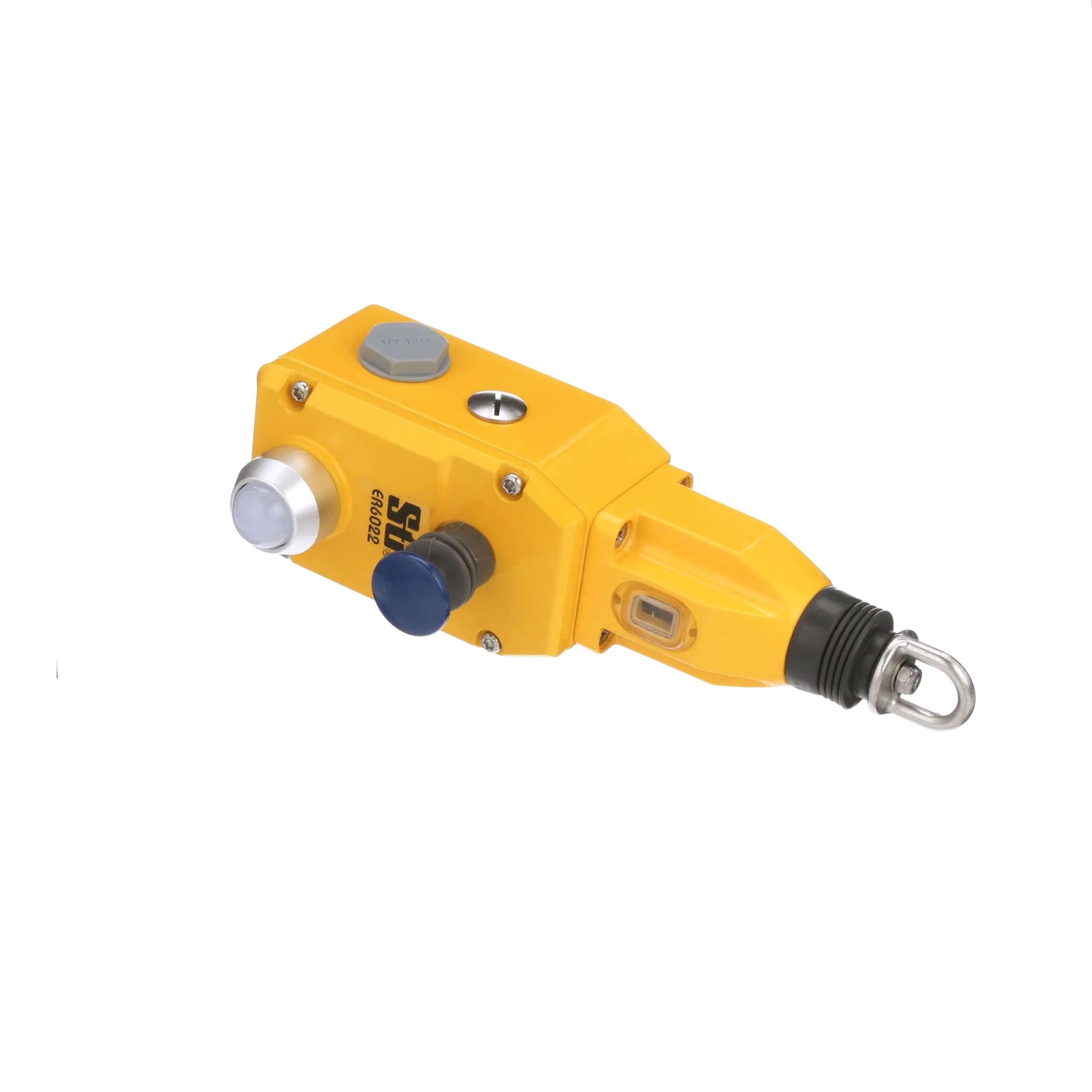

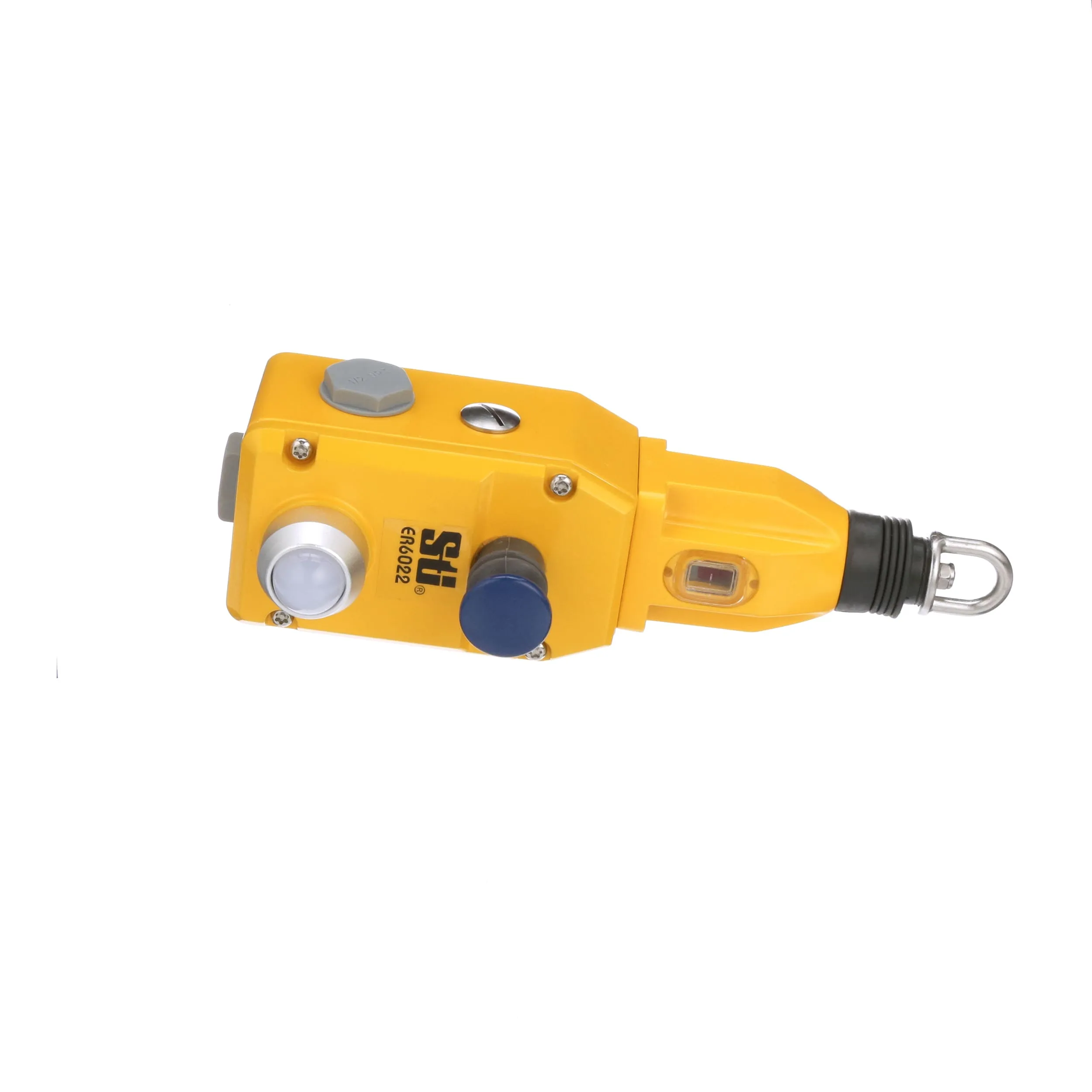

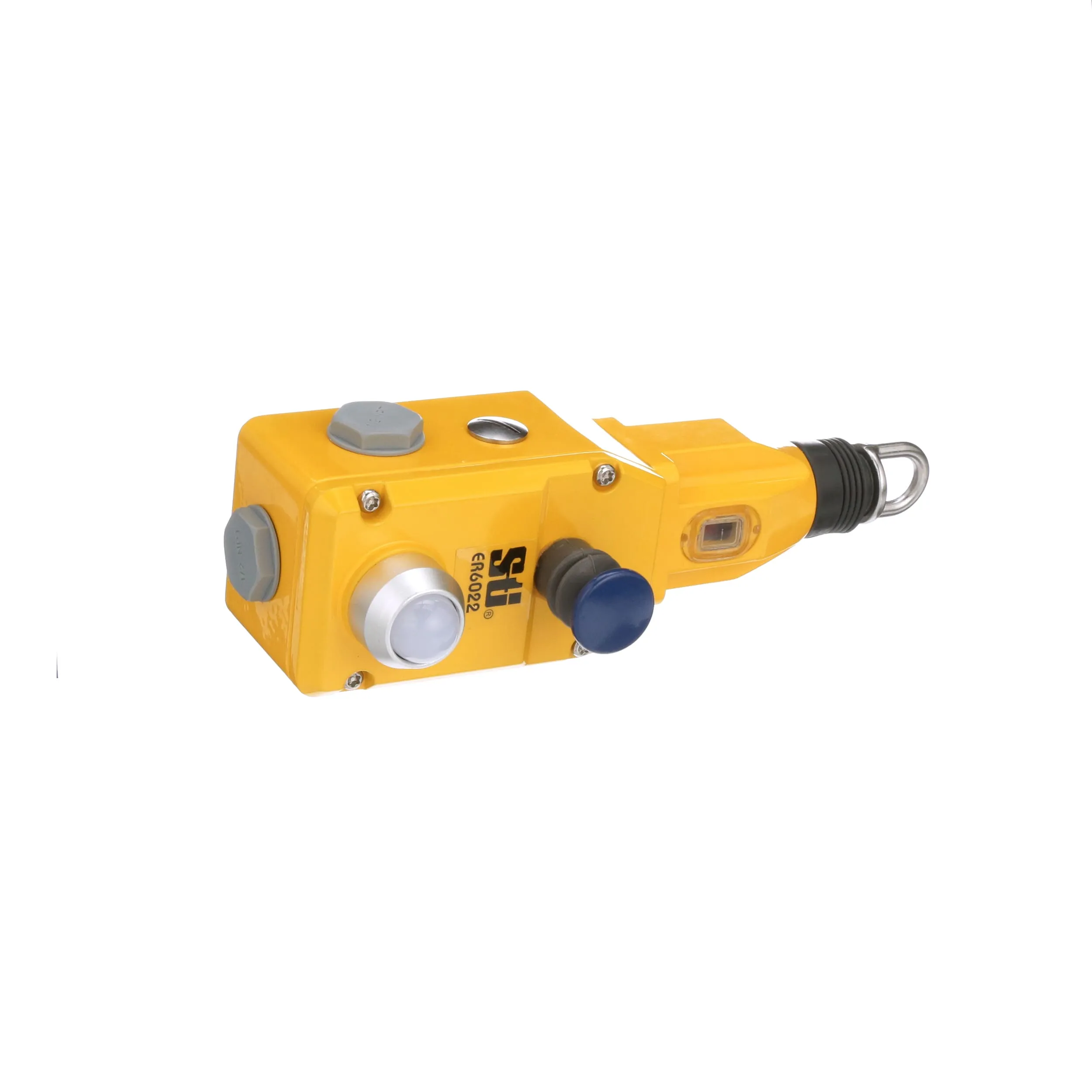

Omron STI | ER Family of Series — ER6022 Model Rope Pull Emergency Stop Switch:
Ideal for rope spans up to 80 m 262 ft.
The ER Series of Emergency Rope Pull Switches covers a broad range of applications. The ER5018 Model is compact and can cover rope spans up to 30 Meters (98 ft.). The ER6022 is slightly larger and can cover rope spans up to 80 Meters. The ER6022 also has an E-stop button incorporated into the lid of the switch. The ER1032 is the largest of the ER Series and can handle the longest rope spans, up to 100 Meters in each direction, for a total of 200 Meters (656 ft.). The ER1032 also has an E-stop incorporated into the Lid of the switch. The ER1032 has a built-in Indicator Beacon that can be wired to illuminate a constant green color or flash red to indicate the status of the switch. All of the ER Series rope pull switches have a built-in Tension Indicator to make set-up and maintenance easier and reduce the occurrence of false trips.
Features:
Applications:
