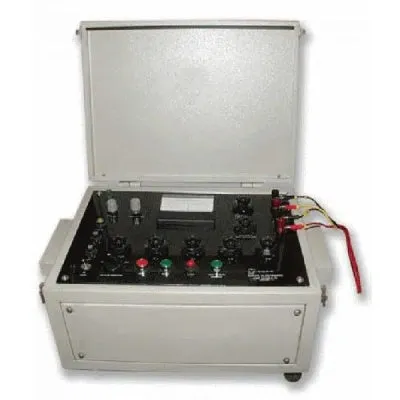

The Metravi RNT-5 Relay Test Set is a versatile, portable testing kit designed for comprehensive testing of protective relays, overcurrent relays, earth fault relays, protective devices, circuit breakers, and tripping coils. Suitable for both laboratory and field use, this unit provides precise control over output currents and voltage for accurate relay testing and diagnostics. Its multi-range current output and variable AC voltage output ensure flexibility and adaptability for different testing requirements.

Key Features:

• Wide Current Output Range: Adjustable output ranging from 0 to 200 Amps, making it ideal for testing a variety of relays and breakers.
• AC Voltage Output: Continuously adjustable from 0 to 230V AC, with fixed options of 50V and 110V, providing up to 460VA capacity.
• Time Measurement: Built-in timer with two selectable ranges (0-9.999 seconds and 0-99.99 seconds) for accurate time-based testing.
• Compact and Portable: Designed for easy transport and setup, perfect for use in the field or the lab.
• High Precision: Accuracy of ±1% in current circuits ensures reliable and consistent measurements.
• Safety and Durability: Enclosed in a sturdy casing for enhanced durability during use.

Specifications:

• Brand: Metravi
• Model: RNT-5
• Warranty: One year against manufacturing defects
• Input Voltage: 230V, single-phase, 50Hz AC
• Output Test Current:
  • 0-1A, 0-2A, 0-5A, 0-10A, 0-20A at 4/10V
  • 0-50A, 0-100A, 0-200A at 4V
• AC Voltage Output: 0-230V AC, capacity 460VA (max)
• Time Measurement: 0-9.999 seconds and 0-99.99 seconds, with ±1% accuracy
• CT Ratio: 1-2-5-10-20-50-100-200A/5A
• Metering Range (AC): 0 to 5A AC

Applications:

• Relay Testing: Ideal for testing protective relays, overcurrent relays, and earth fault relays in a variety of settings.
• Circuit Breaker Testing: Suitable for checking the functionality and reliability of circuit breakers with different current ratings.
• Field Testing: Compact design makes it convenient for on-site diagnostics and troubleshooting.
• Laboratory Use: Can be employed in controlled environments for precise testing of relay and protection systems.

The Metravi RNT-5 Relay Test Set provides a reliable, high-precision solution for professionals working in electrical testing and maintenance, ensuring the safety and efficiency of electrical protection systems.
