Product Details
＋

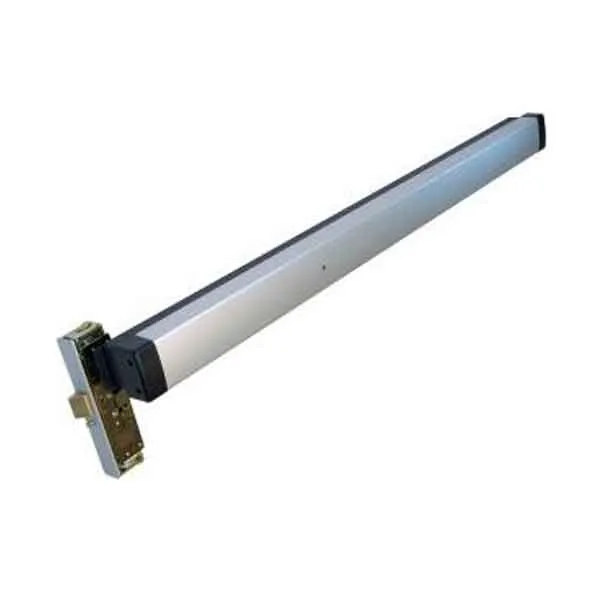

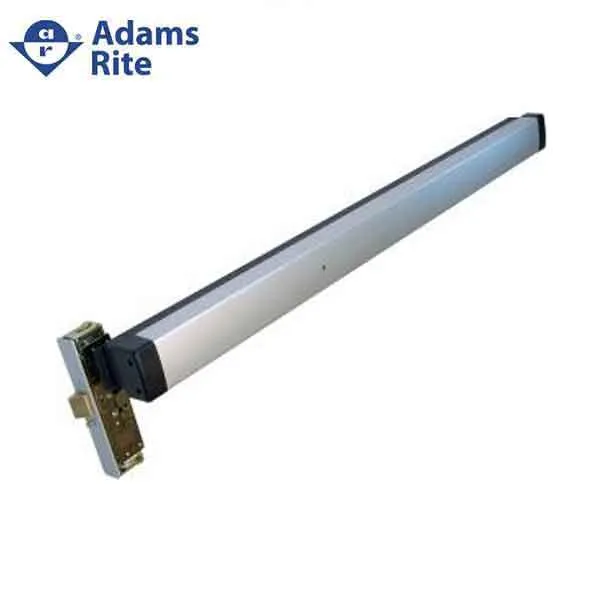

The 8400 Series Narrow Stile Mortise Exit Device is designed for narrow stile aluminum applications that require a life safety exit device with mortise locking solution.
Designed for use in single door applications.
More Details Below
Specifications
| Certifications | UL 305 Panic Hardware ANSI/BHMA A156.3-2008 Grade 1 ANSI/BHMA A156.3-2014 Grade 2 |
| Material | Push bar made of anodized aluminum |
| Handing | LHR |
| Push bar Length | 42" [1066.8 mm] |
| Backset | 31/32" [24.6 mm] |
| Door Thickness | Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm]. |
| Stile Width | Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors. |
| Projection | 2-5/8" [66.7 mm] when fully projected, 1-5/8" [41.3 mm] when dogged. |
| Dogging | Standard dogging with hex key |
| Fasteners | Standard machine screws. |
| Cylinders | Accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam. Accommodates cylinder lengths from 1" [25.4 mm] to 1-1/4" [31.8 mm]. |
| Entry Trim Functions | For entry trim function 08 (key locks/unlocks lever) or function 09 (key releases lever) select any standard 1" [25.4 mm] length, 1-5/32 [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4 mm] to 1-1/4" [31.8 mm]. Sold separately. |
| Bolts and Strikes | Mortise deadlatch with bolt measuring 5/8" x 1" x 5/8" [15.9 mm x 25.4 mm x 15.9 mm] throw. Solid brass bolt. Standard strike of stainless steel included. |
